Kusto Query Language (KQL)¶

(all outputs are based on Example database)

Importing Example database¶

Sources

Stores.csv

Download the csv sources

Go to the Forge, open or create the mission with the network.

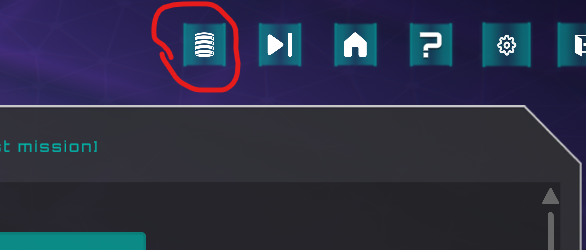

Open Data Explorer application

Create a new database with the name Example, set the asset name db_example

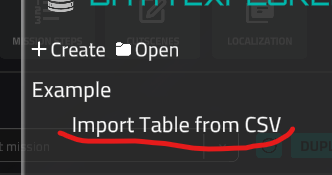

Import the first csv, for example, Stores. Pay attention, the table name must be the same as the file name (without extension). This is important for correct example query outcomes.

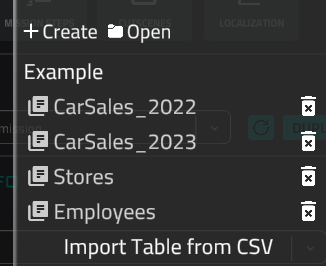

Your result should look like this. Don't forget to save the database to the network asset storage by clicking Apply Changes button.

search¶

Add a row to the result table if any cell in this row contains the defined value (case-insensitive search is used). This can be the first element in the pipeline. If it is the first element, all tables will be checked (the query will be executed against the entire database).

If the query is executed against the entire database, the result table will include the matched column, as well as any column that is present in all tables.

Example

Table1: columns A, B, C

Table2: columns C, D, E

If a match is found in column A, the result table will include columns A and C (since C exists in all tables).

If the query is processed against a single table (as the second element in the pipeline), all columns will be added to the result.

Query Example:

search "Davis"

Output

+----+----------+
| Id | LastName |
+----+----------+
| 4  | Davis    |
+----+----------+

Employees | search "Davis"

Output

+----+------------------+-------------+-----------+----------+
| Id | HireDate         | SalaryMonth | FirstName | LastName |
+----+------------------+-------------+-----------+----------+
| 4  | 10/10/2019 00:00 | 5300        | Maria     | Davis    |
+----+------------------+-------------+-----------+----------+

You can also specify which columns you want to search for the value in.

Query Example:

search in(FirstName, LastName) "Davis"

Column names support wildcard matching with *. For example, to search only in columns whose names start with "Sale":

search in(Sale*) "2022"

Regex Search¶

Instead of a plain string, you can use a regular expression by wrapping the pattern in forward slashes /:

search "/^J.*son$/"

This will match any cell whose value starts with "J" and ends with "son" (e.g., "Johnson", "Jackson").

Piping¶

Piping is performed using the '|' character. It separates the results of the query. The output of the previous operation will be processed in the next part of the pipeline. This means that the table resulting from the previous pipe action will be passed to the next part.

Query Example:

CarSales_2022 | search "Toyota" | search in(StoreId) "1"

For better understanding, you can split this query into three stages and run each separately. This will give you an example of how the result is refined.

Stage 1

CarSales_2022

Stage 2

CarSales_2022 | search "Toyota"

Stage 3

CarSales_2022 | search "Toyota" | search in(StoreId) "1"

Table Name¶

To process a specific table, you should define its name. This action can only be the first in the pipeline.

Query Example:

CarSales_2022 | search "Toyota"

(CarSales_2022 is the table name)

where¶

Filter the table by a boolean condition. This operation cannot be the first in the pipeline.

Query Example:

CarSales_2022 | where StoreId == 1

Expressions can be complex. They can contain brackets (for setting order), methods, and operators (see bellow).

Operators and methods¶

Comparisons for numbers, dates, and strings¶

==, <=, >=, <, >, !=

Arithmetic operators¶

Arithmetic operations can be used in where, extend, and project expressions:

+, -, *, /, %

Query Example:

Employees | extend AnnualSalary = SalaryMonth * 12

Order (brackets), and, or¶

CarSales_2022 | where (StoreId == 1 or StoreId == 3) and Brand == "Toyota"

Output

+----+------------------+--------+------------------+---------+------------+
| Id | SaleDate         | Brand  | VinCode          | StoreId | EmployeeId |
+----+------------------+--------+------------------+---------+------------+
| 1  | 05/01/2022 00:00 | Toyota | JTDBL40E79902001 | 1       | 1          |
| 16 | 15/12/2022 00:00 | Toyota | JTDBL40E79902016 | 3       | 1          |
+----+------------------+--------+------------------+---------+------------+

ago¶

Returns a timestamp. This is the current date minus the time defined in the arguments. You can specify days, hours, minutes, and seconds. It is useful only for databases that are constantly being updated with fresh records.

Possible arguments:

ago(1d), ago(50m), ago(2h), ago(300s)

Query Example:

CarSales_2023 | where SaleDate >= ago(30d)

Only records that were created within the last 30 days will be returned. However, this depends on the values in the SaleDate column, so you need to ensure that the dates in that column are set correctly.

todatetime¶

Parses a string into a datetime. Useful for exact date and time comparisons and checking intervals. Here are the possible time formats for the arguments:

yyyy-MM-dd HH:mm:ss
yyyy-MM-dd
yyyy-MM-ddTHH:mm:ssZ
yyyy-MM-ddTHH:mm:ss
yyyyMMdd
HH:mm:ss - will be used current date and parsed time
unix time (number)

Checking interval query example:

Employees | where HireDate >= todatetime("2017-01-01") and HireDate <= todatetime("2018-12-31")

contains¶

VinCode contains "jtd"

Returns true if current EntityName column cell contains a string, defined in the right part (case-insensitive).

Query Example:

CarSales_2022 | where VinCode contains "jtd" or VinCode contains "2017"

Output

+----+------------------+--------+------------------+---------+------------+
| Id | SaleDate         | Brand  | VinCode          | StoreId | EmployeeId |
+----+------------------+--------+------------------+---------+------------+
| 1  | 05/01/2022 00:00 | Toyota | JTDBL40E79902001 | 1       | 1          |
| 16 | 15/12/2022 00:00 | Toyota | JTDBL40E79902016 | 3       | 1          |
| 17 | 20/12/2022 00:00 | Ford   | 1FTRX17L6VNA2017 | 1       | 2          |
+----+------------------+--------+------------------+---------+------------+

startwith¶

Returns true if the current column value starts with the specified string on the right side (case-insensitive).

Query Example:

Employees | where FirstName startwith "j" or LastName startwith "j"

endwith¶

Returns true if the current column value ends with the specified string on the right side (case-insensitive).

Query Example:

CarSales_2023 | where Brand endwith "a"

strcat¶

String concatenation (up to 16 parameters):

strcat("Hello", " ", "World", "!")

Result:

"Hello World!"

has¶

Returns true if the received string contains part of the specified value. Unlike the contains operator, an indexed term is used. For example, this query will return no results:

Stores | where Address has "lon"

+----+---------+---------+----------+-----------+
| Id | Country | Address | OpenDate | CloseDate |
+----+---------+---------+----------+-----------+
+----+---------+---------+----------+-----------+

However, this query will return a set of data:

Stores | where Address has "london"

+----+---------+------------------------+------------------+------------------+
| Id | Country | Address                | OpenDate         | CloseDate        |
+----+---------+------------------------+------------------+------------------+
| 3  | UK      | 789 King's Way, London | 30/09/2018 00:00 | 31/08/2023 00:00 |
+----+---------+------------------------+------------------+------------------+

=~¶

The same as == (for string comparison), however, the case will be ignored.

Query Example:

CarSales_2022 | where Brand =~ "toyota"

Result:

+----+------------------+--------+------------------+---------+------------+
| Id | SaleDate         | Brand  | VinCode          | StoreId | EmployeeId |
+----+------------------+--------+------------------+---------+------------+
| 1  | 05/01/2022 00:00 | Toyota | JTDBL40E79902001 | 1       | 1          |
| 16 | 15/12/2022 00:00 | Toyota | JTDBL40E79902016 | 3       | 1          |
+----+------------------+--------+------------------+---------+------------+

extend¶

Adds a new column or changes the value of an existing column in the result table.

Query Example:

Employees
| extend Name = strcat(FirstName, " ", LastName)

The result table will include a new column, "Name" with the concatenation of the "FirstName" and "LastName" columns, for example: Alice Johnson.

order by¶

Changes the table order based on column values. The default sorting order is descending. It supports nested sorting, which means that when a user defines multiple columns separated by commas, all columns will be combined into groups, then sorting will be performed within each group and again for each defined column.

Explanation of nested sorting:

 "Alice", 30, 90, //Name, Age, Score
 "Bob", 25, 85,
 "Alice", 25, 95,
 "Charlie", 30, 85,
 "Bob", 30, 95

Result (ascending sorting by name then age):

"Alice", 25, 95,
"Alice", 30, 90,
"Bob", 25, 85
"Bob", 39, 95
"Charlie", 30, 85

KQL Query Example:

CarSales_2022 |
order by StoreId asc

CarSales_2022 |
order by StoreId asc, SaleDate

summarize¶

Group rows by column values. All rows will be grouped by the values of the column specified after the "by" keyword.

CarSales_2022
| summarize by Brand, StoreId

Result:

+------------+---------+
| Brand      | StoreId |
+------------+---------+
| Toyota     | 1       |
| Ford       | 1       |
| BMW        | 2       |
| Honda      | 2       |
| Audi       | 3       |
| Mercedes   | 1       |
| Nissan     | 2       |
| Hyundai    | 3       |
| Kia        | 3       |
| Volkswagen | 1       |
| Volvo      | 2       |
| Lexus      | 2       |
| Subaru     | 3       |
| Mazda      | 1       |
| Chevrolet  | 2       |
| Toyota     | 3       |
+------------+---------+

To retrieve additional data, various aggregation methods can be applied before the "by" keyword.

CarSales_2022
| summarize count(), brandCount = dcount(Brand) by StoreId

Result:

+---------+--------+-------------+
| StoreId | count_ | brandCount  |
+---------+--------+-------------+
| 1       | 6      | 5           |
| 2       | 8      | 6           |
| 3       | 6      | 5           |
+---------+--------+-------------+

Here is a list of aggregation and filter methods:

count¶

Return count of rows in current group. Can receive argument, where argument is a column name (optional).

dcount¶

Returns the count of unique records in the specified column for the current group. Requires an argument (column name).

sum¶

Sum of all cells in the group. Column name must be set in the arguments. Its type must be a number.

Employees
| summarize sum(SalaryMonth)

Result:

+-----------------+
| sum_SalaryMonth |
+-----------------+
| 26100           |
+-----------------+

avg¶

Average of all values in the group. A column name must be provided as an argument, and its data type must be numeric.

Employees
| where FireDate == null
| summarize avg(SalaryMonth)

Result:

+------------------+
| avg_SalaryMonth  |
+------------------+
| 5266.66666666667 |
+------------------+

min¶

Returns the minimum value from all cells in the group. A column name must be provided as an argument, and its data type must be numeric.

Employees
| where FireDate == null
| summarize min(SalaryMonth)

Result:

+-----------------+
| min_SalaryMonth |
+-----------------+
| 5000            |
+-----------------+

max¶

Returns the maximum value from all cells in the group. A column name must be provided as an argument, and its data type must be numeric.

Employees
| where FireDate == null
| summarize max(SalaryMonth)

Result:

+-----------------+
| max_SalaryMonth |
+-----------------+
| 5500            |
+-----------------+

percentile¶

Returns a percentile value from all cells in the group. A column name must be provided as the first argument, along with a second parameter specifying the percentile (0...100). The column's data type must be numeric.

Employees
| where FireDate == null
| summarize percentile(SalaryMonth, 10)

avg_max¶

This is a filtering method that returns the row or column with the maximum value in the column specified as the first parameter. The second parameter defines what to return — either the column name or the entire row (*).

The data type of the first column argument can be any. If it is a number or a date, the highest or latest row will be selected. For strings, alphabetical sorting is applied.

Example 1:

CarSales_2022
| summarize arg_max(SaleDate, *)

+----+------------------+-------+-----------------+---------+------------+
| Id | SaleDate         | Brand | VinCode         | StoreId | EmployeeId |
+----+------------------+-------+-----------------+---------+------------+
| 20 | 31/12/2022 00:00 | Audi  | WAULC68E84A5020 | 3       | 5          |
+----+------------------+-------+-----------------+---------+------------+

Example 2:

CarSales_2022
| summarize arg_max(SaleDate, SaleDate) by StoreId

+---------+------------------+
| StoreId | SaleDate         |
+---------+------------------+
| 1       | 20/12/2022 00:00 |
| 2       | 28/12/2022 00:00 |
| 3       | 31/12/2022 00:00 |
+---------+------------------+

avg_min¶

This is a filtering method that returns the row or column with the minimum value in the column specified as the first parameter. The second parameter defines what to return — either the column name or the entire row (*).

The data type of the first column argument can be any. If it is a number or a date, the highest or latest row will be selected. For strings, alphabetical sorting is applied.

CarSales_2023
| summarize firstSale = arg_min(SaleDate, SaleDate) by StoreId

+---------+------------------+
| StoreId | firstSale        |
+---------+------------------+
| 1       | 10/01/2023 00:00 |
| 2       | 15/01/2023 00:00 |
| 3       | 05/02/2023 00:00 |
+---------+------------------+

project¶

Adds only the specified columns to the result of the request. It cannot be the first step. The columns can be existing ones with original values, modified columns (name or values), or entirely new columns. This can be used to reduce the number of columns, which improves performance in subsequent pipeline queries.

Example:

CarSales_2023
| project SaleDate, Car = strcat(Brand, ": ", VinCode), newColumn = 2 * 6, JohnSmith = EmployeeId == 1

Result:

+------------------+-----------------------------+-----------+-----------+
| SaleDate         | Car                         | newColumn | JohnSmith |
+------------------+-----------------------------+-----------+-----------+
| 10/01/2023 00:00 | Mercedes: WDDGF8AB5DA6021   | 12        | 1         |
| 15/01/2023 00:00 | Nissan: 1N4AL11D75C7022     | 12        | 0         |
| 05/02/2023 00:00 | Hyundai: KMHDU46DXAU8023    | 12        | 0         |
| 18/02/2023 00:00 | Kia: KNDJT2A5XB90024        | 12        | 0         |
| 20/03/2023 00:00 | Volkswagen: 3VWB17AJ5HM0025 | 12        | 1         |
| 10/04/2023 00:00 | Volvo: YV1CZ59H64110026     | 12        | 0         |
| 15/04/2023 00:00 | Lexus: JTHBJ46G29220027     | 12        | 0         |
| 05/05/2023 00:00 | Subaru: 4S3BL61638730028    | 12        | 0         |
| 14/05/2023 00:00 | Mazda: JM1BK323X8150029     | 12        | 1         |
| 01/06/2023 00:00 | Chevrolet: 2G1WT58KX9110030 | 12        | 0         |
| 10/06/2023 00:00 | Toyota: JTDBL40E79902031    | 12        | 0         |
| 05/07/2023 00:00 | Ford: 1FTRX17L6VNA2032      | 12        | 1         |
| 15/07/2023 00:00 | BMW: WBA3B3C56FPD3033       | 12        | 0         |
| 20/08/2023 00:00 | Honda: 2HGFA16578H4034      | 12        | 0         |
| 25/08/2023 00:00 | Audi: WAULC68E84A5035       | 12        | 0         |
+------------------+-----------------------------+-----------+-----------+

limit¶

Reduces the row count in the query result by the number specified in the expression.

Example:

CarSales_2022
| limit 5

Result:

+----+------------------+--------+------------------+---------+------------+
| Id | SaleDate         | Brand  | VinCode          | StoreId | EmployeeId |
+----+------------------+--------+------------------+---------+------------+
| 1  | 05/01/2022 00:00 | Toyota | JTDBL40E79902001 | 1       | 1          |
| 2  | 15/01/2022 00:00 | Ford   | 1FTRX17L6VNA2002 | 1       | 2          |
| 3  | 20/02/2022 00:00 | BMW    | WBA3B3C56FPD3003 | 2       | 3          |
| 4  | 18/03/2022 00:00 | Honda  | 2HGFA16578H4004  | 2       | 4          |
| 5  | 22/04/2022 00:00 | Audi   | WAULC68E84A5005  | 3       | 5          |
+----+------------------+--------+------------------+---------+------------+

union¶

The union operator is used to create a new table from several tables. This query type can be the first in the pipeline, and then the union will be performed using the specified expressions. If this query is not the first in the pipeline, the result of the previous query will be used as the first table to be united with the following expressions.

This query supports both nested queries (within brackets) and simple table names as expressions. By default (kind=outer), all rows from the tables will be combined into the new table, regardless of whether the schemas of the tables are the same or not. If the schemas differ, all cell values will be "null" in columns that were not present in the original table.

kind=outer (default)¶

In this example, the first 5 rows from three tables will be combined. The first two tables (CarSales_2022 and CarSales_2023) have the same schema, so none of the cells will have null values. However, the schema of the third table differs, which will result in null values in the columns from the CarSales_X tables in the last 5 rows, as well as nulls in the 3 rows for the columns from the third table.

union
    (CarSales_2022 | limit 5),
    (CarSales_2023 | limit 5),
    (Stores)

+----+------------------+------------+------------------+---------+------------+---------+------------------------+------------------+------------------+
| Id | SaleDate         | Brand      | VinCode          | StoreId | EmployeeId | Country | Address                | OpenDate         | CloseDate        |
+----+------------------+------------+------------------+---------+------------+---------+------------------------+------------------+------------------+
| 1  | 05/01/2022 00:00 | Toyota     | JTDBL40E79902001 | 1       | 1          | null    | null                   | null             | null             |
| 2  | 15/01/2022 00:00 | Ford       | 1FTRX17L6VNA2002 | 1       | 2          | null    | null                   | null             | null             |
| 3  | 20/02/2022 00:00 | BMW        | WBA3B3C56FPD3003 | 2       | 3          | null    | null                   | null             | null             |
| 4  | 18/03/2022 00:00 | Honda      | 2HGFA16578H4004  | 2       | 4          | null    | null                   | null             | null             |
| 5  | 22/04/2022 00:00 | Audi       | WAULC68E84A5005  | 3       | 5          | null    | null                   | null             | null             |
| 1  | 10/01/2023 00:00 | Mercedes   | WDDGF8AB5DA6021  | 1       | 1          | null    | null                   | null             | null             |
| 2  | 15/01/2023 00:00 | Nissan     | 1N4AL11D75C7022  | 2       | 2          | null    | null                   | null             | null             |
| 3  | 05/02/2023 00:00 | Hyundai    | KMHDU46DXAU8023  | 3       | 4          | null    | null                   | null             | null             |
| 4  | 18/02/2023 00:00 | Kia        | KNDJT2A5XB90024  | 3       | 5          | null    | null                   | null             | null             |
| 5  | 20/03/2023 00:00 | Volkswagen | 3VWB17AJ5HM0025  | 1       | 1          | null    | null                   | null             | null             |
| 1  | null             | null       | null             | null    | null       | USA     | 123 Main St, New York  | 01/03/2015 00:00 | null             |
| 2  | null             | null       | null             | null    | null       | Canada  | 456 Maple Rd, Toronto  | 15/06/2017 00:00 | null             |
| 3  | null             | null       | null             | null    | null       | UK      | 789 King's Way, London | 30/09/2018 00:00 | 31/08/2023 00:00 |
+----+------------------+------------+------------------+---------+------------+---------+------------------------+------------------+------------------+

kind=inner¶

The kind=inner union type works differently. First, it must be explicitly set. In the result, only the rows that have matching columns and identical values across all tables will be included.

In this example, two tables with completely different schemas will be combined using the kind=inner union type. Even though these tables have different sets of columns, some values in CarSales_2022.StoreId and Stores.Id are the same. By using the project query, the name of this column can be aligned to perform the union query with some results.

union kind=inner
    (CarSales_2022 | project StoreIdUnion = StoreId, SaleDate),
    (Stores | project StoreIdUnion = Id, Country, Address)

+--------------+------------------+---------+------------------------+
| StoreIdUnion | SaleDate         | Country | Address                |
+--------------+------------------+---------+------------------------+
| 1            | 05/01/2022 00:00 | USA     | 123 Main St, New York  |
| 1            | 15/01/2022 00:00 | USA     | 123 Main St, New York  |
| 2            | 20/02/2022 00:00 | Canada  | 456 Maple Rd, Toronto  |
| 2            | 18/03/2022 00:00 | Canada  | 456 Maple Rd, Toronto  |
| 3            | 22/04/2022 00:00 | UK      | 789 King's Way, London |
| 1            | 30/05/2022 00:00 | USA     | 123 Main St, New York  |
| 2            | 15/06/2022 00:00 | Canada  | 456 Maple Rd, Toronto  |
| 3            | 07/07/2022 00:00 | UK      | 789 King's Way, London |
| 3            | 20/08/2022 00:00 | UK      | 789 King's Way, London |
| 1            | 10/09/2022 00:00 | USA     | 123 Main St, New York  |
| 2            | 15/09/2022 00:00 | Canada  | 456 Maple Rd, Toronto  |
| 2            | 05/10/2022 00:00 | Canada  | 456 Maple Rd, Toronto  |
| 3            | 20/10/2022 00:00 | UK      | 789 King's Way, London |
| 1            | 25/11/2022 00:00 | USA     | 123 Main St, New York  |
| 2            | 10/12/2022 00:00 | Canada  | 456 Maple Rd, Toronto  |
| 3            | 15/12/2022 00:00 | UK      | 789 King's Way, London |
| 1            | 20/12/2022 00:00 | USA     | 123 Main St, New York  |
| 2            | 25/12/2022 00:00 | Canada  | 456 Maple Rd, Toronto  |
| 2            | 28/12/2022 00:00 | Canada  | 456 Maple Rd, Toronto  |
| 3            | 31/12/2022 00:00 | UK      | 789 King's Way, London |
+--------------+------------------+---------+------------------------+

join¶

Joins two tables by common columns. This operation cannot be the first one. The first table is the result of a previous execution, and the second is defined as an expression. There are several types of joins, with the inner join being the default. If there is no column defined as common between the two tables, an error will be returned.

Syntax:

T1 | join kind=<kind> (T2) on <column1>, <column2>

Example:

Stores
| extend StoreIdJoin = Id
| join (CarSales_2022 | extend StoreIdJoin = StoreId | extend SaleId = Id) on StoreIdJoin
| project SaleId, StoreId = StoreIdJoin, Country, Address, SaleDate

Result:

+--------+---------+---------+------------------------+------------------+
| SaleId | StoreId | Country | Address                | SaleDate         |
+--------+---------+---------+------------------------+------------------+
| 1      | 1       | USA     | 123 Main St, New York  | 05/01/2022 00:00 |
| 2      | 1       | USA     | 123 Main St, New York  | 15/01/2022 00:00 |
| 6      | 1       | USA     | 123 Main St, New York  | 30/05/2022 00:00 |
| 10     | 1       | USA     | 123 Main St, New York  | 10/09/2022 00:00 |
| 14     | 1       | USA     | 123 Main St, New York  | 25/11/2022 00:00 |
| 17     | 1       | USA     | 123 Main St, New York  | 20/12/2022 00:00 |
| 3      | 2       | Canada  | 456 Maple Rd, Toronto  | 20/02/2022 00:00 |
| 4      | 2       | Canada  | 456 Maple Rd, Toronto  | 18/03/2022 00:00 |
| 7      | 2       | Canada  | 456 Maple Rd, Toronto  | 15/06/2022 00:00 |
| 11     | 2       | Canada  | 456 Maple Rd, Toronto  | 15/09/2022 00:00 |
| 12     | 2       | Canada  | 456 Maple Rd, Toronto  | 05/10/2022 00:00 |
| 15     | 2       | Canada  | 456 Maple Rd, Toronto  | 10/12/2022 00:00 |
| 18     | 2       | Canada  | 456 Maple Rd, Toronto  | 25/12/2022 00:00 |
| 19     | 2       | Canada  | 456 Maple Rd, Toronto  | 28/12/2022 00:00 |
| 5      | 3       | UK      | 789 King's Way, London | 22/04/2022 00:00 |
| 8      | 3       | UK      | 789 King's Way, London | 07/07/2022 00:00 |
| 9      | 3       | UK      | 789 King's Way, London | 20/08/2022 00:00 |
| 13     | 3       | UK      | 789 King's Way, London | 20/10/2022 00:00 |
| 16     | 3       | UK      | 789 King's Way, London | 15/12/2022 00:00 |
| 20     | 3       | UK      | 789 King's Way, London | 31/12/2022 00:00 |
+--------+---------+---------+------------------------+------------------+

Kusto Query Language (KQL)¶

Importing Example database¶

search¶

Regex Search¶

Piping¶

Table Name¶

where¶

Operators and methods¶

Comparisons for numbers, dates, and strings¶

Arithmetic operators¶

Order (brackets), and, or¶

ago¶

todatetime¶

contains¶

startwith¶

endwith¶

strcat¶

has¶

=~¶

extend¶

order by¶

summarize¶

count¶

dcount¶

sum¶

avg¶

min¶

max¶

percentile¶

avg_max¶

avg_min¶

project¶

limit¶

union¶

kind=outer (default)¶

kind=inner¶

join¶

kind=inner¶

kind=leftouter¶

kind=rightouter¶

kind=fullouter¶
